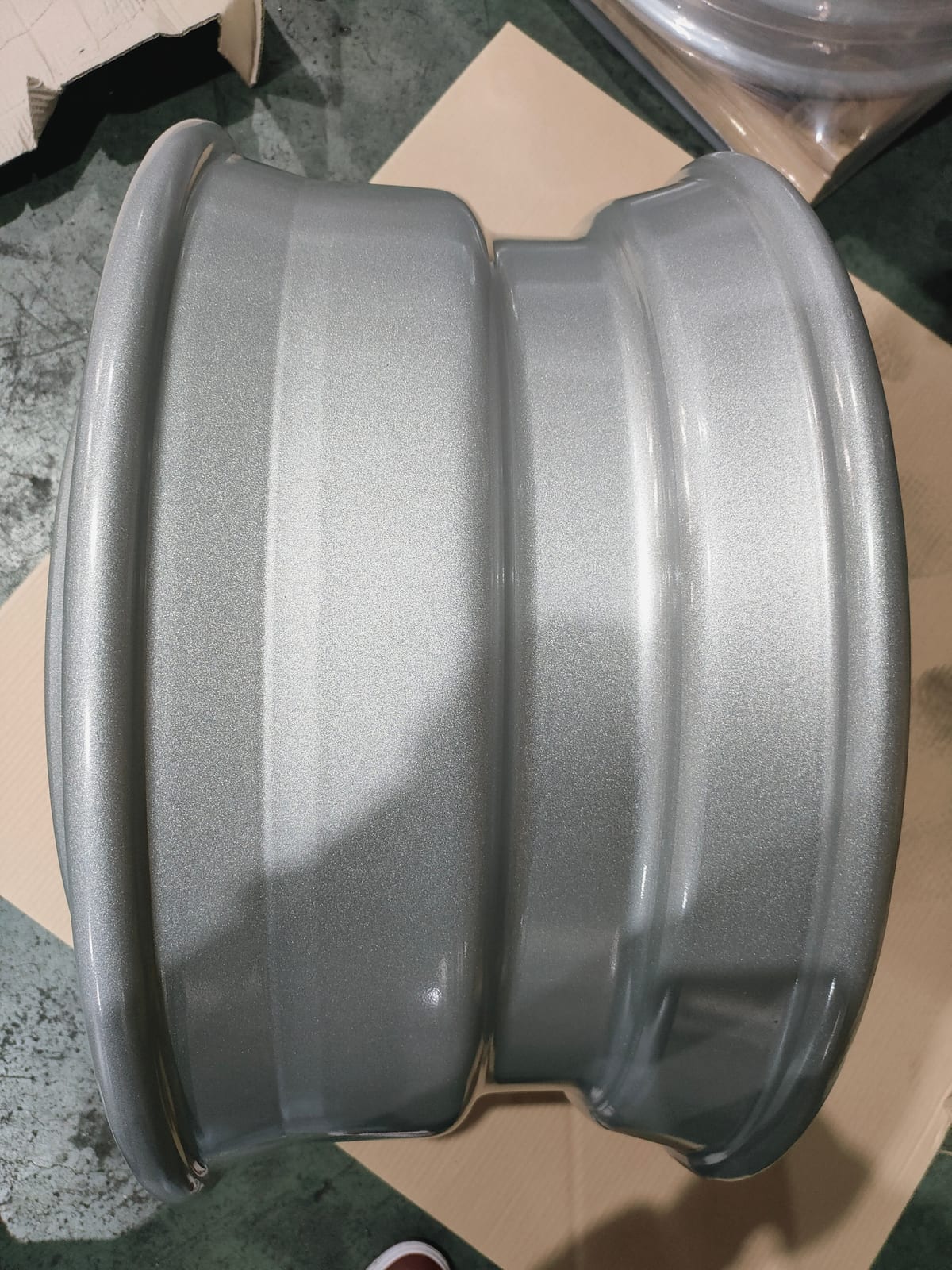

9.75x22.5 EcoStar Steel Truck Rim - 18mm

UWHCO 9.75x22.5 EcoStar Steel Truck Rim manufactured with premium materials and precision engineering. ISO/ATF 16949 certified quality for global markets.

Key Features:

Q345B Steel construction for superior durability
Tubeless design for reliable performance
10 holes / 18mm bolt pattern
PCD: 335 mm
Silver Powder Coat finish for corrosion resistance
ISO/ATF 16949 certified manufacturing

Applications:

EcoStar Trucks, Heavy Commercial

Technical Specifications

Parameter	Value
Rim Size	9.75x22.5
Type	Tubeless
Bolt Holes	10 holes / 18mm
PCD	335 mm
Material	Q345B Steel
Finish	Silver Powder Coat
Weight	~38 kg
Application	EcoStar Trucks, Heavy Commercial
Certification	ISO/ATF 16949

Packaging

Standard export packaging with individual protective wrapping. Palletized for safe transportation. Custom packaging available for OEM orders.
